Professional manufacturer of water & beverage machine
| Can diameter | φ52.5-99mm |
|---|---|
| Dimension | 2650*2200*2200mm |
| Rated power | 6.75kw |
| Capacity of production | 10000 cph |

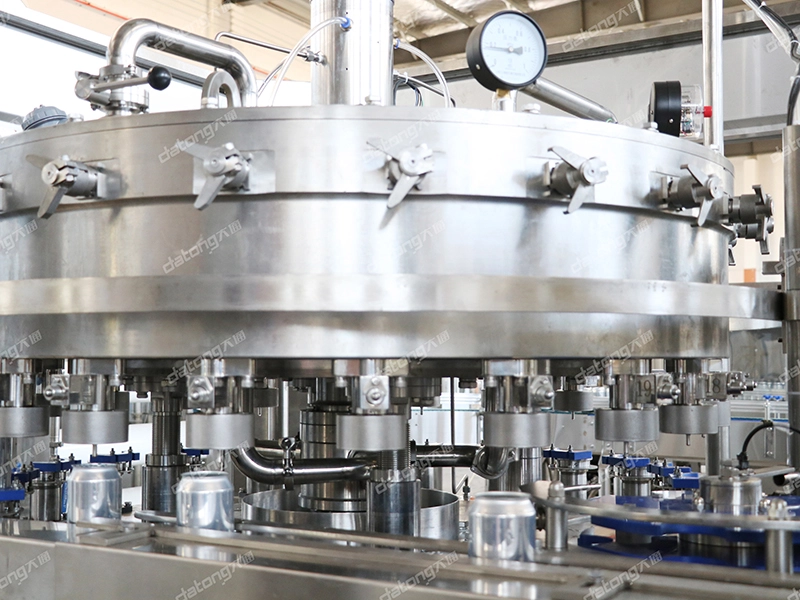

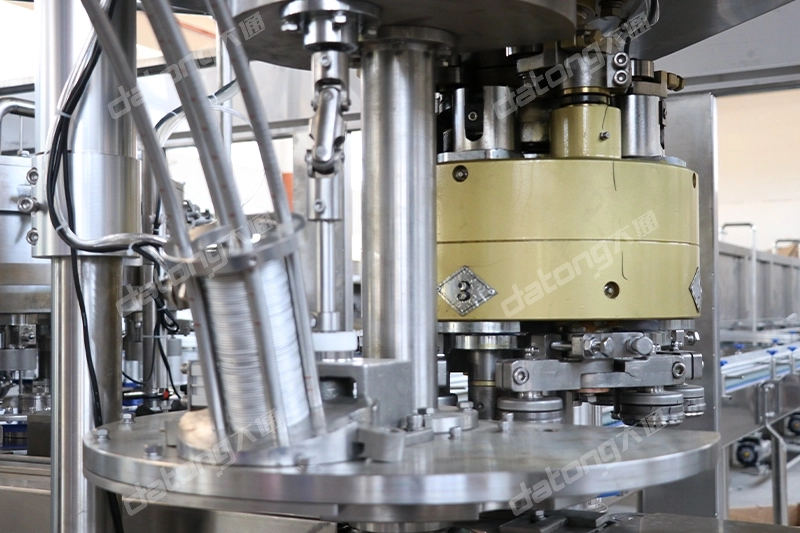

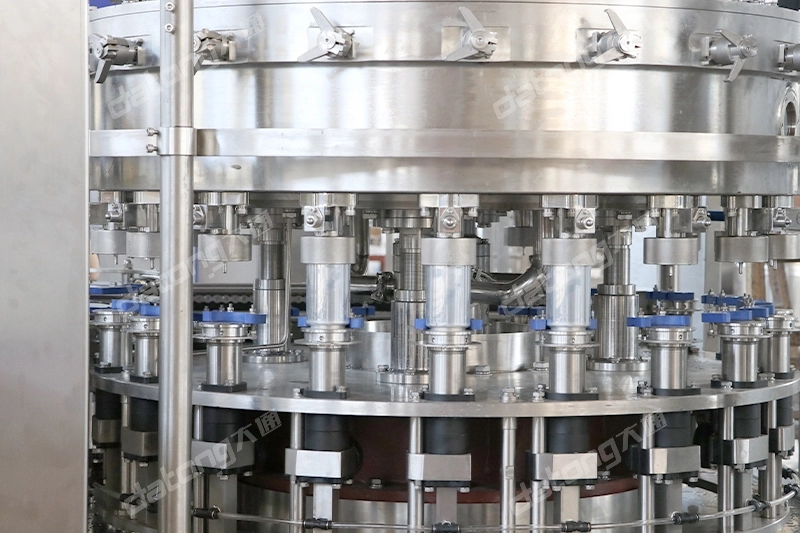

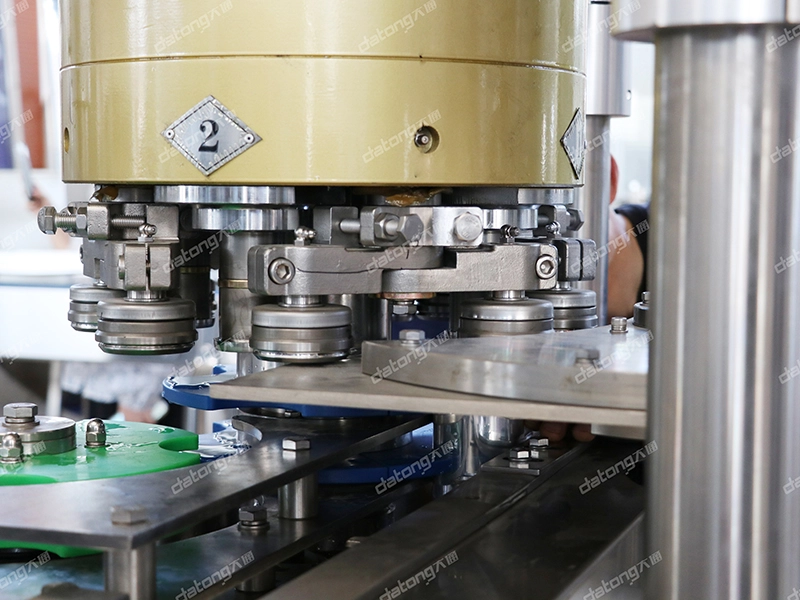

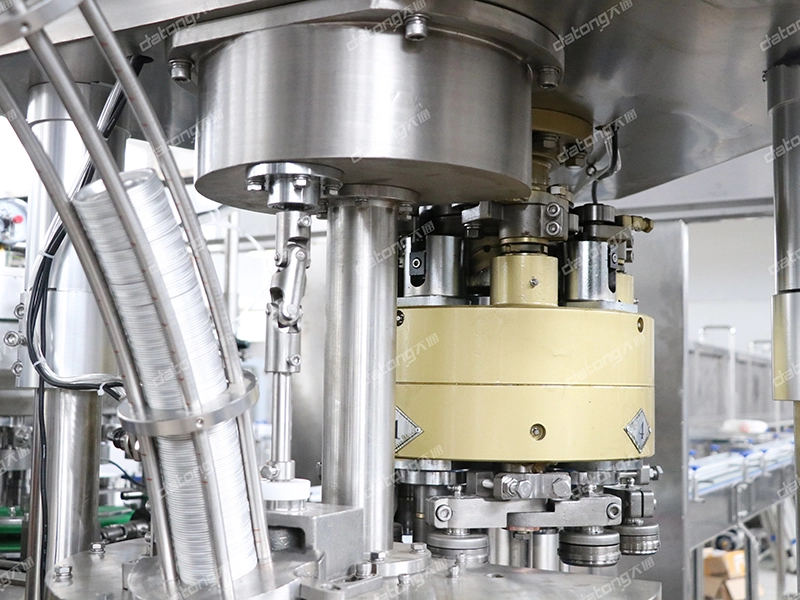

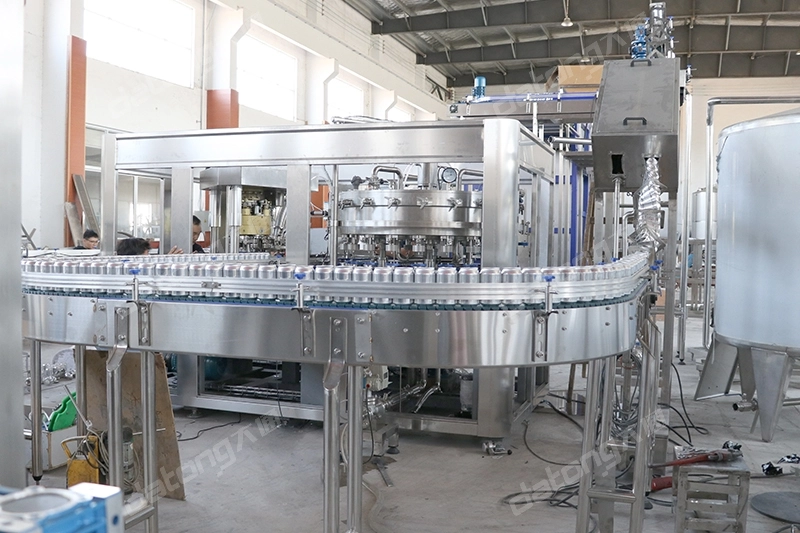

The machine is a device developed exclusively by DATONG MACHINE on the basis of digesting and absorbing domestic and international (still) pop can filling and seaming machines (sealing machines) . It adopts the normal pressure filling principle . After it passes through the dialing wheel , the empty can will enter into the lift can supporting disc , and the filling valve is aligned with the empty can , which will rise for sealing . Meanwhile , the valve port of the filling valve is automatically opened . When the filling liquid level blocks the gas return pipe mouth , the filling stops . The filled can will be conveyed to the sealing machine head by the hook chain . The cap will be sent onto the can mouth by the cap rises , the pressing head presses the can mouth , the sealing wheel carries out pre-sealing and then real sealing . After it is sealed , the can is pushed out by the beating head of the cap beating mechanism and then enters into the can discharging procedure .
| Model | YDGF12-4 | YDGF18-4 | YDGF20-4 | YDGF30-6 |
| Capacity | 3000CPH | 6000CPH | 10000CPH | 15000CPH |
| Can diameter | φ52.5-99mm | |||
| Can Height | 39-160mm | |||
| Power | 3.5kw | 5.5kw | 6.75kw | 7.5kw |
| Weight | 2500kg | 3500kg | 4000kg | 5000kg |
| Dimension | 2100*1500*1900mm | 2450*1750*2200mm | 2650*2200*2200mm | 3050*2250*2200mm |
