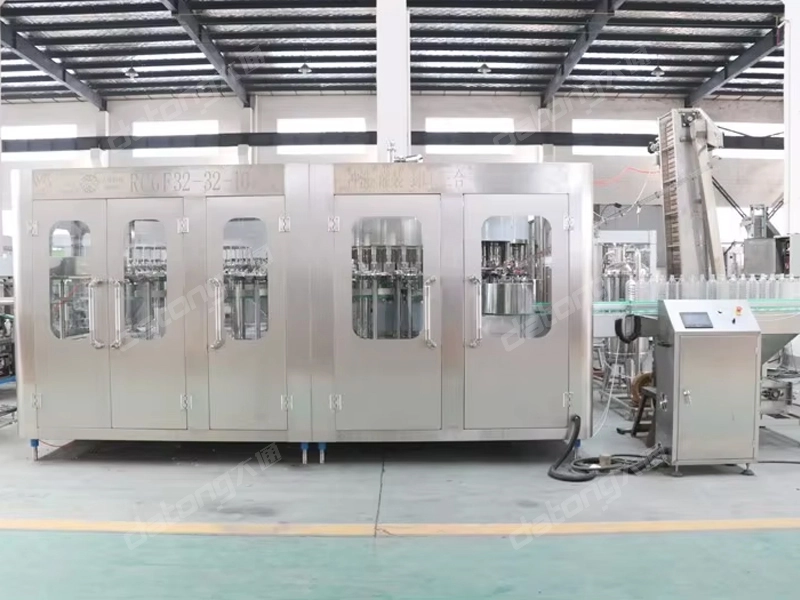

15000BPH RCGF32-32-10 Juice Filling Machine

bottling equipment for glass bottle. Standard type of RCGF series hot filling machine is “3-in-1”.aiming at special production condition,one disinfectant rinser can be increased to be 4-in-1 monobloc.the system gives full consideration for beverage’s characteristics(e.g.it is easy to have foaming for tea beverage and mixed juice.)and main technical requirement of hot filling.

Inquire

Product Description

The RCGF series juice bottling machine incorporates washing,filling and capping into one and is a kind of full-automatic equipment .It is suitable for producing PET and Plastic bottled juice and tea. The method of filling adopts hot filling. The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable. the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.

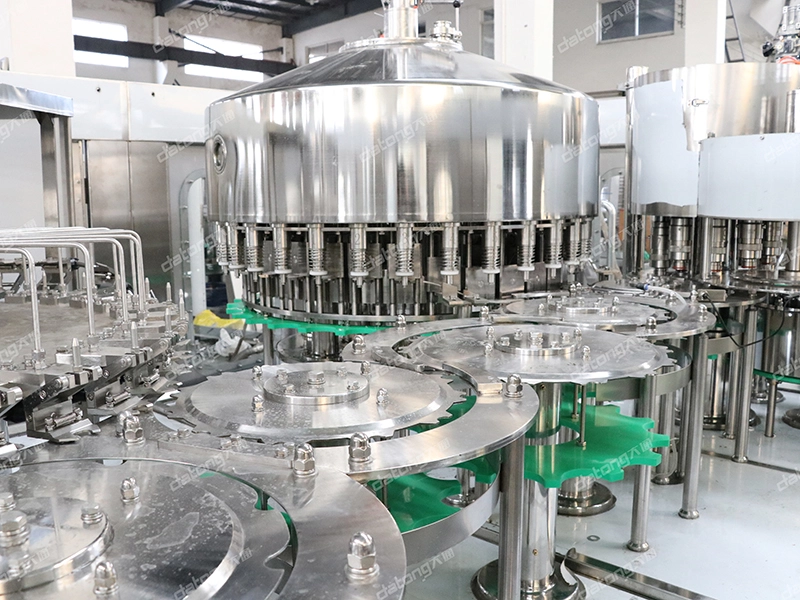

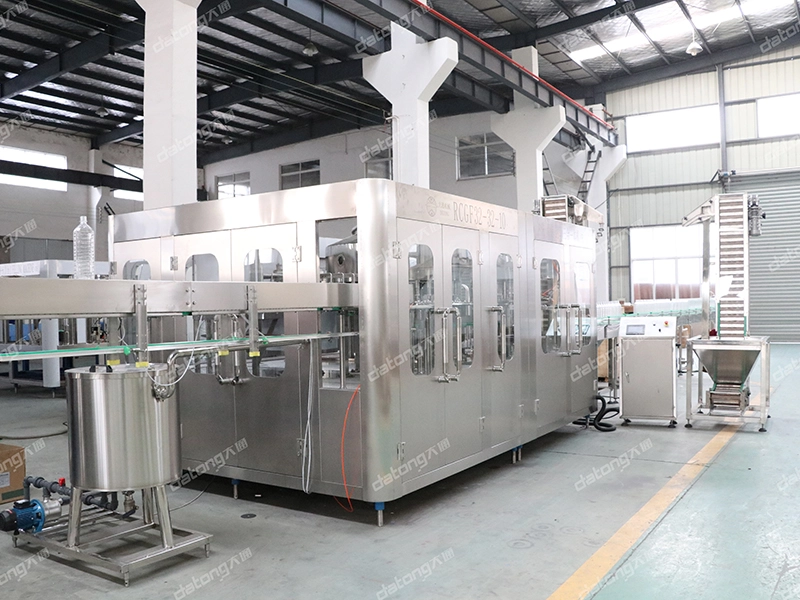

3-in-1 juice filling machine 15000bph juice filling and capping machine

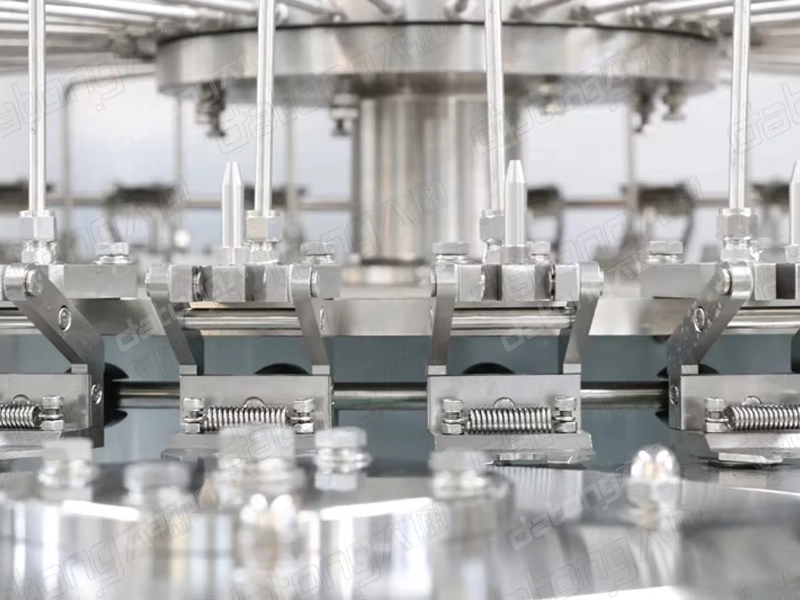

Washing part:

high automatic juice filling machine juice filling machine with washing part

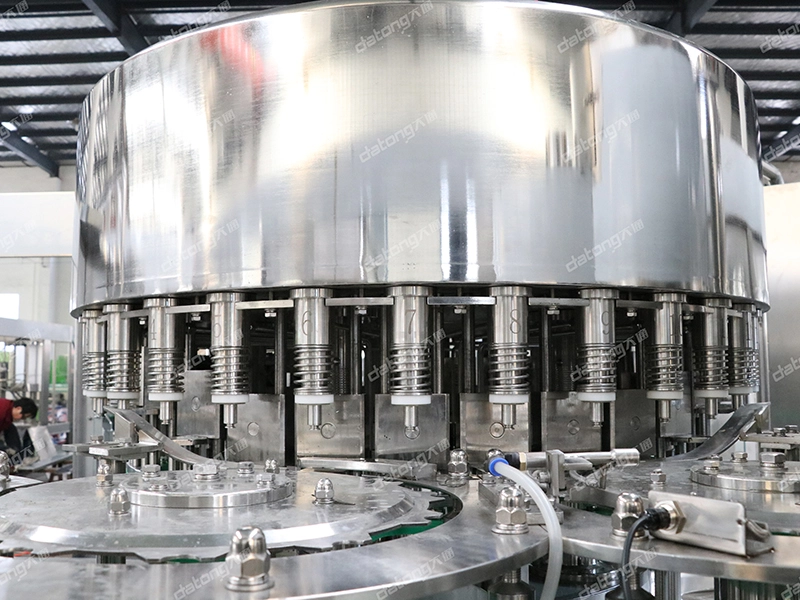

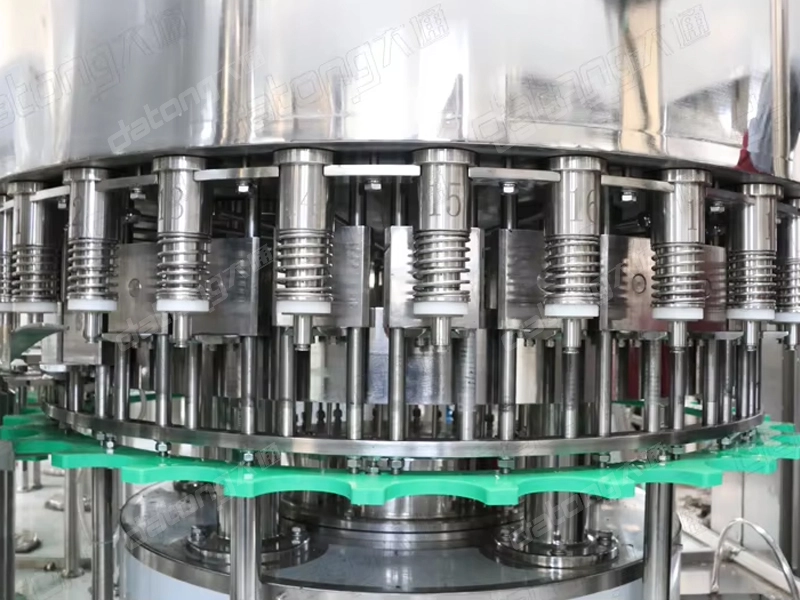

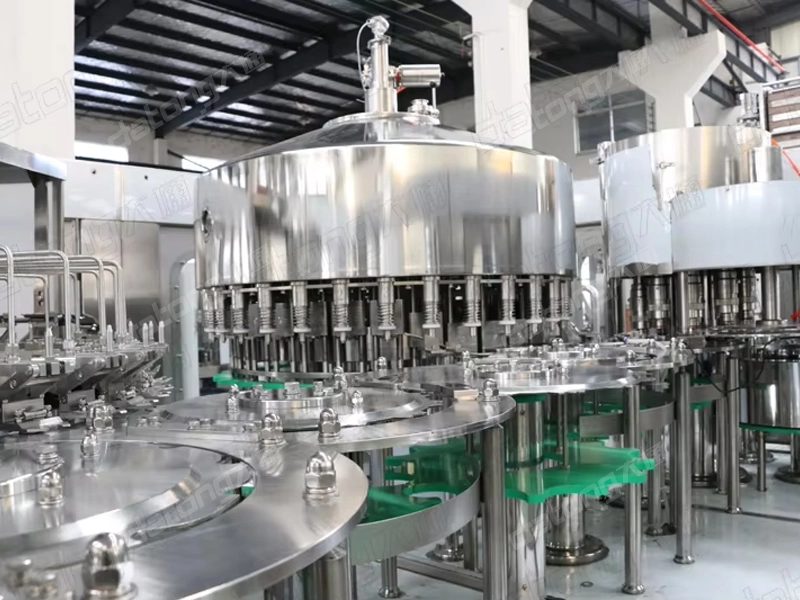

Filling part:

juice filling machine with filling part full automatic juice filling machine

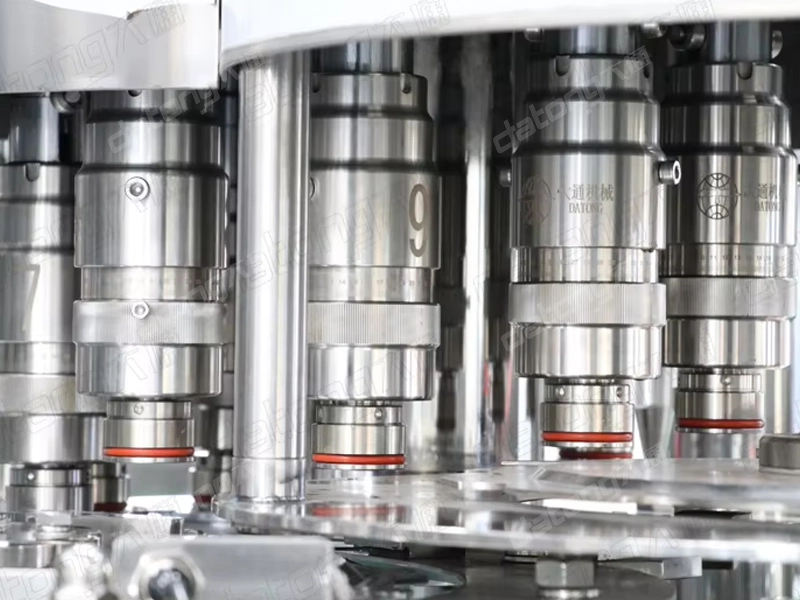

Capping part:

full automatic juice filling machine with capping part

Video

Specifications

Model	RCGF14-12-5	RCGF16-16-6	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10	RCGF40-40-12	RCGF50-50-15	RCGF60-60-15
Production capacity（b/h）	2500	4000	6000	8000	13000	18000	22000	26000
Suitable bottle shape	circular or square
Bottle diameter（mm）	Φ50-Φ95
Bottle height（mm）	150-310
Washing medium	aseptic water
Total power（kw）	3	3.5	4	5.5	7.5	11	15	20
Weight（kg）	2200	2800	3000	4500	6000	9000	15000	18000
Overall dimensions（mm）	205015502200	240017502200	255018502200	300021502200	420027002400	470032002400	650033502400	720036502600

Get in Touch With Us

Would you like to ask us a question, are you looking for a contact person or do you need help with a problem? Then simply fill in our contact form. We will get in touch with you as soon as possible.

FAQ

Are you a factory or trading company?

We are a factory, professional water treatment equipment manufacturer and small bottle water production line with about 16 years experience. Factory covers an area of 6000 square. There have been more than 40 countries use our products.

How long is the warranty of your equipment?

2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale !

What Is The Capacity Of 3-In-1 water Bottling Machine?

bottle mineral water filling machine with capacity from 2000BPH to 36000BPH. This kind of packing features light, good-tenacity, strong-intensity and hard-breakage, in addition, PET bottle can be made into different specs and shapes; For the consumer, they can take easily and conveniently without exploding.

Where is your factory located? How can I visit there?

Our factory is located in Zhaxi economic development zone,Leyu town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us!

What is the features of our company?

We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc
