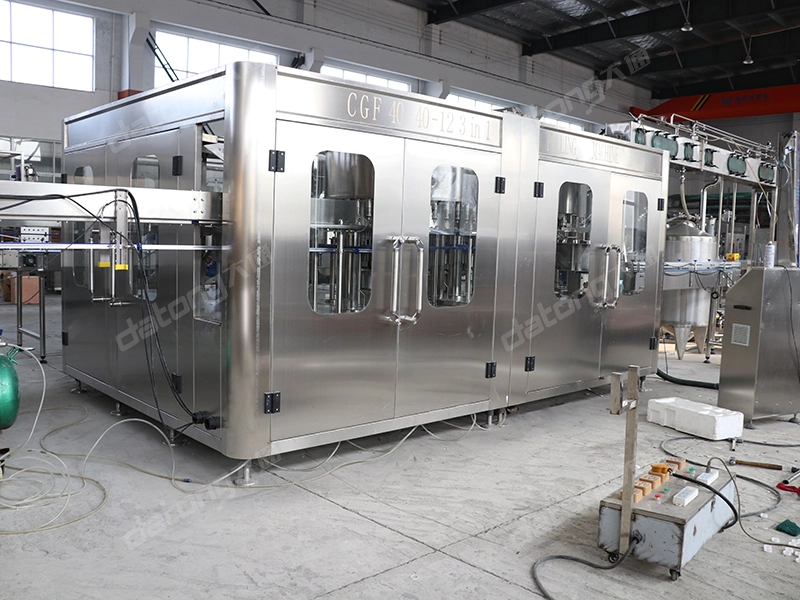

20000BPH 40-40-12 Bottle Mineral Water Filling Machine

bottle mineral water filling machine with capacity from 2000BPH to 36000BPH. This kind of packing features light, good-tenacity, strong-intensity and hard-breakage, in addition, PET bottle can be made into different specs and shapes; For the consumer, they can take easily and conveniently without exploding.

Inquire

Product Description

Suitable for water filling, widely used in the bottles packing on 0.2L-2L small scale bottles.
Capacity：20000BPH
Brand：DATONG-Automatic Filling Machine
Application：Pure water, Mineral water, Spring water
3 IN 1 Washing, Filling, Capping integration machine

mineral water bottle filling machine washing part

Features:

1. The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
3. Spring type rinsing catcher can wash both inside and outside of the bottle
4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
5. Magnetic powered cap device ensures tightness and prevents damage of the caps
6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
7. Built-in safeguard mechanism ensures the safety of operator and machine.
8. High efficient air clean filter system ensures high sanitary requirements
9. Low overall machine noise
10. Self-lubricating system imported from America provides continuous smooth operation
datong 20000BPH water bottling machine

Video

Specifications

Model	CGF12125	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012	CGF606015	CGF808020
Number of washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
suitable bottle specification(mm)	φ=50-110 H=170 volume=330-2250ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw	Main motor 15kw	Main motor 19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	76800×66400 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	150
