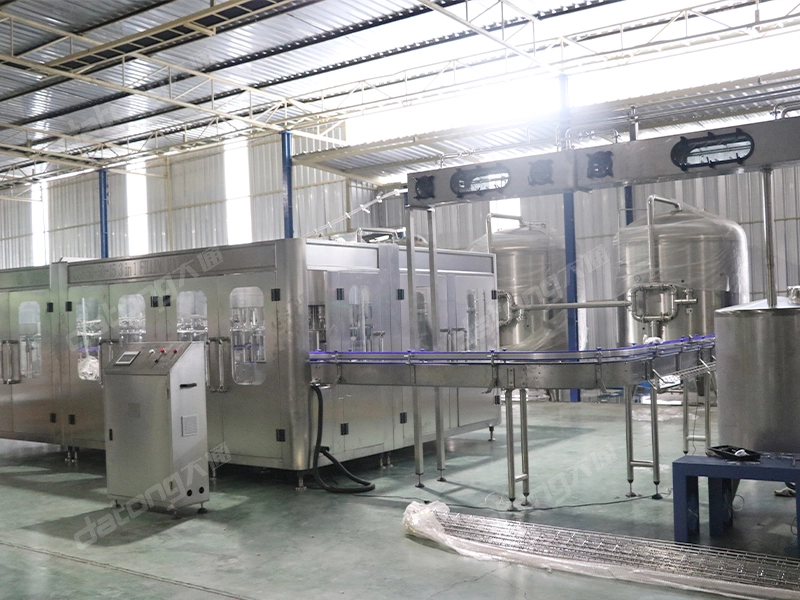

24000BPH 50-50-15 Bottle Mineral Water Filling Machine

bottle mineral water filling machine with capacity from 2000BPH to 36000BPH. This kind of packing features light, good-tenacity, strong-intensity and hard-breakage, in addition, PET bottle can be made into different specs and shapes; For the consumer, they can take easily and conveniently without exploding.

Inquire

Product Description

Suitable for bottled water, widely used in the bottles packing on 0.2L-2L small scale bottles.
Capacity：24000BPH
Brand: DATONG– Automatic Filling Machine
3 IN 1 Rinsing, Filling, Capping integration machine

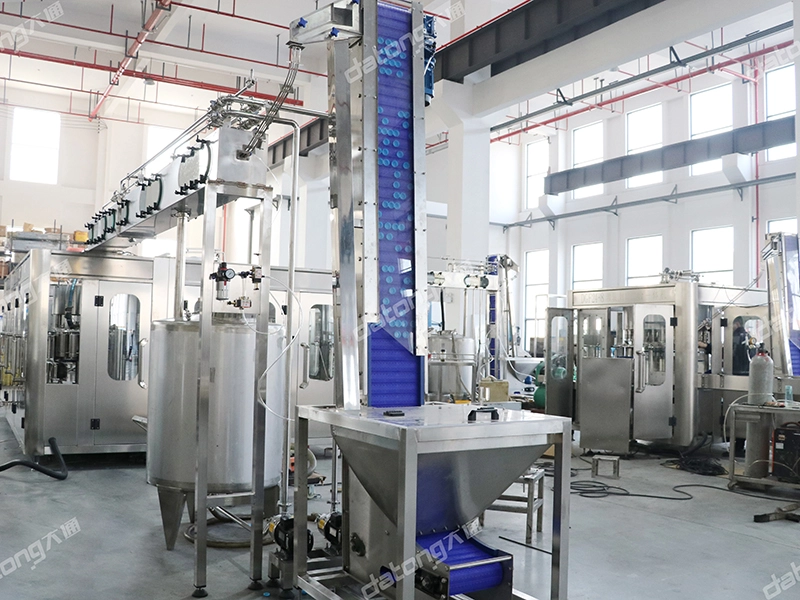

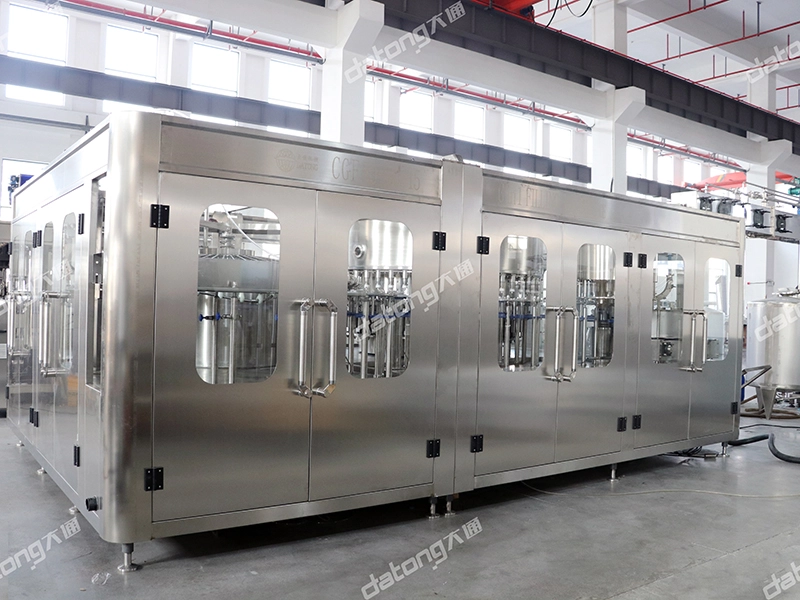

datong mineral water bottling machine datong 24000bph water bottling machine water bottling machine factory

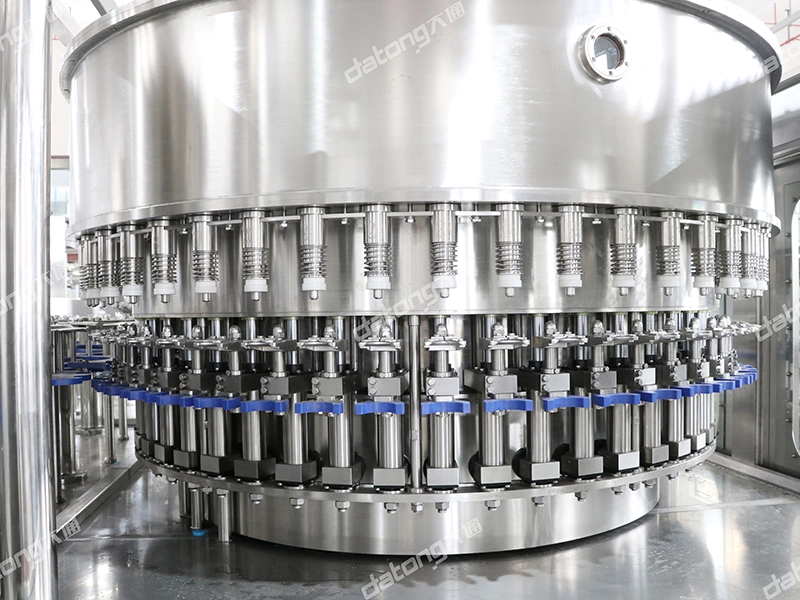

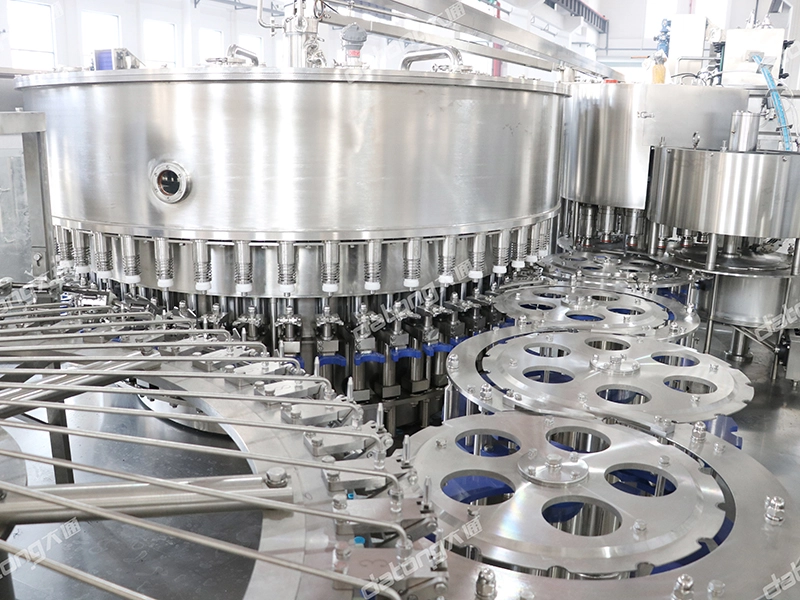

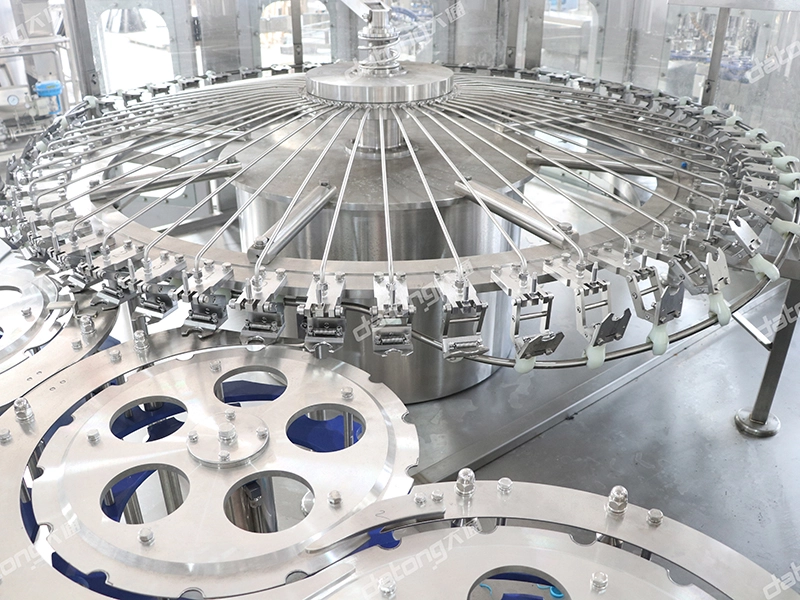

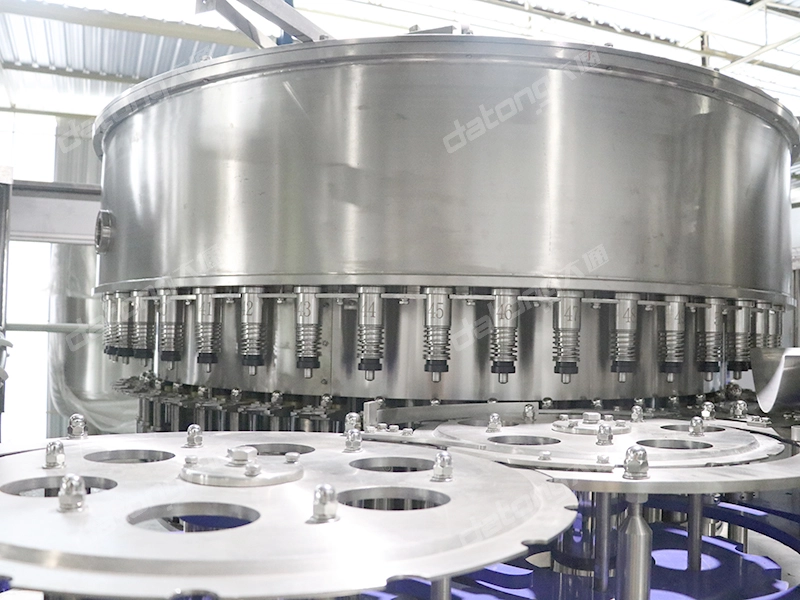

Washing and filling part:

Specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck,avoiding the second contamination.
Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

mineral water bottle filling machine washing and filling part mineral water bottling machine washing and filling part datong bottle water filling machine

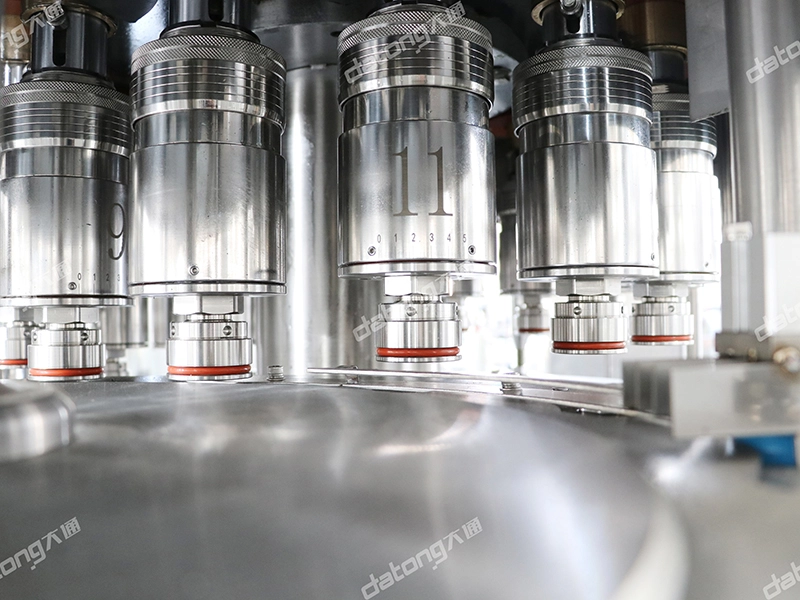

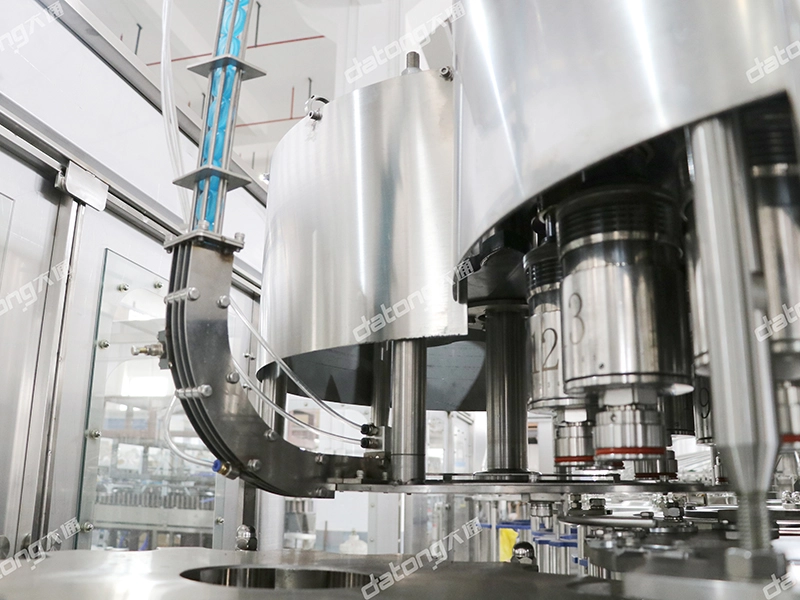

Capping part:

Screwing capper, cap sorter, falling cap guide.

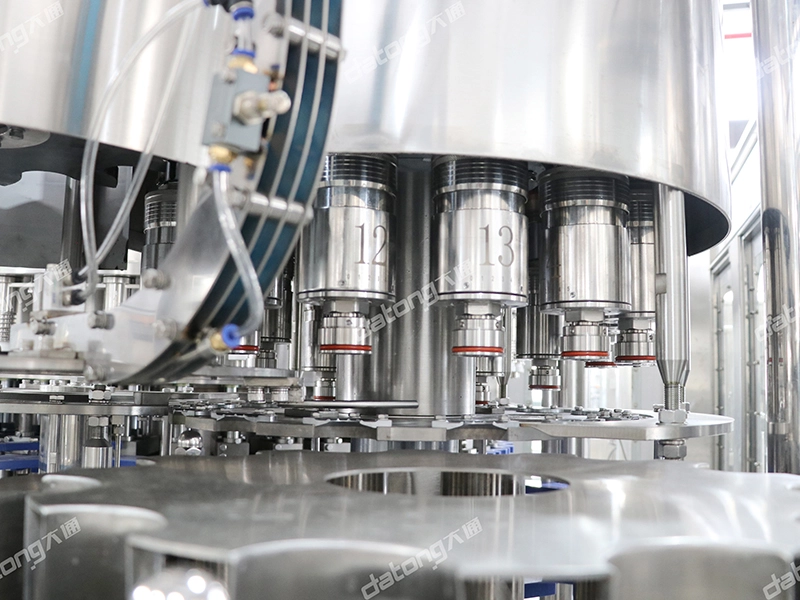

Capping head have itself scale. Easier adjust and count.
bottle water filling machine capping part mineral water bottle filling machine screwing capper

Video

Specifications

Model	CGF12125	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012	CGF606015	CGF808020
Number of washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
suitable bottle specification(mm)	φ=50-110 H=170 volume=330-2250ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw	Main motor 15kw	Main motor 19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	76800×66400 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	150
