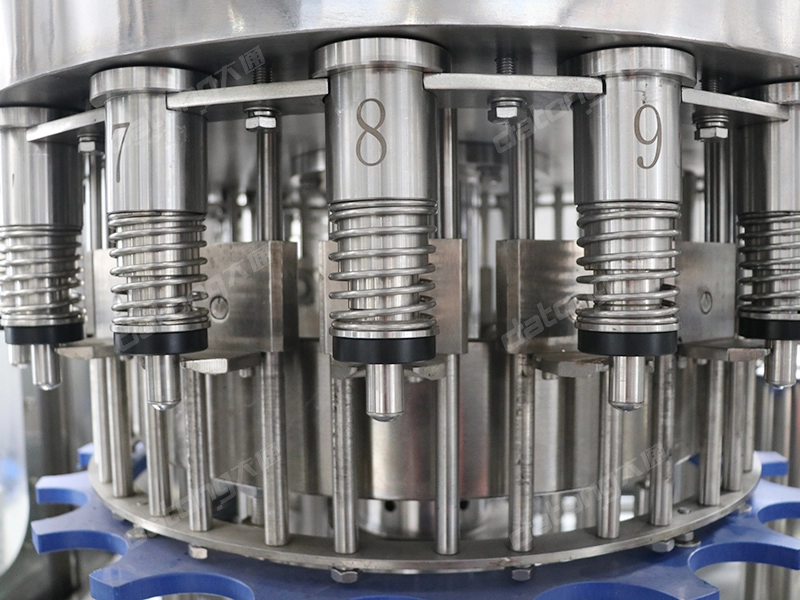

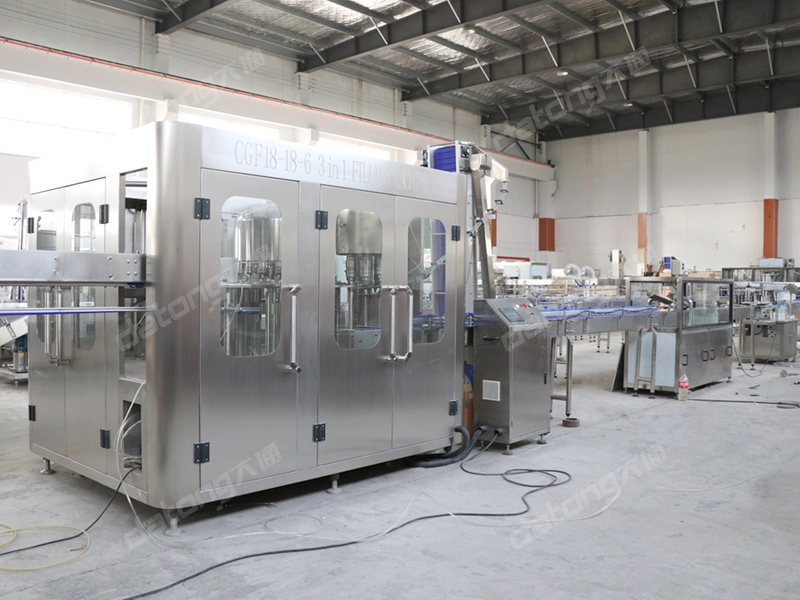

6000BPH 18-18-6 Bottle Mineral Water Bottling Machine

6000BPH 18-18-6 bottle mineral water bottling machine with capacity from 2000BPH to 36000BPH. This kind of packing features light, good-tenacity, strong-intensity and hard-breakage, in addition, PET bottle can be made into different specs and shapes; For the consumer, they can take easily and conveniently without exploding.

Inquire

Product Description

1.Compact structure, saving workshop space
2.All parts in contact with materials are made of high-quality stainless steel
3.The machine adopts imported electrical components with reliable quality
4.High filling speed and accurate liquid level control
5.PLC control, high degree of automation

stainless steel mineral water bottle filling machine compact structure of mineral water bottle filling machine water bottling machine

Features:

1. The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
3. Spring type rinsing catcher can wash both inside and outside of the bottle
4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
5. Magnetic powered cap device ensures tightness and prevents damage of the caps
6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
7. Built-in safeguard mechanism ensures the safety of operator and machine.
8. High efficient air clean filter system ensures high sanitary requirements
9. Low overall machine noise
10. Self-lubricating system imported from America provides continuous smooth operation
water bottling machine line 600bph mineral water bottle filling machine datong mineral water bottle filling machine

Video

Specifications

Mode	CGF14-12-5	CGF16-16-6	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15	CGF60-60-15
Production capacity(B/H)	2000-3500	3500-5000	5000-7000	7000-12000	12000-15000	15000-20000	20000-24000	24000-30000
Suitable bottle shape	Circular or Square
Bottle diameter(mm)	Φ50-Φ95
Bottle height(mm)	150-310
Washing medium	Aseptic Water
Total power (kw)	2	3.5	4	5.5	7.5	11	15	20
Weight (kg)	2200	2800	3500	4500	6000	9000	15000	18000
Overall dimensions(mm)	205015502200	240017502200	255018502200	300021502200	420027002400	470032002400	650033502400	720036502600

Get in Touch With Us

Would you like to ask us a question, are you looking for a contact person or do you need help with a problem? Then simply fill in our contact form. We will get in touch with you as soon as possible.

FAQ

Are you a factory or trading company?

We are a factory, professional water treatment equipment manufacturer and small bottle water production line with about 16 years experience. Factory covers an area of 6000 square. There have been more than 40 countries use our products.

What Is The Capacity Of 3-In-1 water Bottling Machine?

bottle mineral water filling machine with capacity from 2000BPH to 36000BPH. This kind of packing features light, good-tenacity, strong-intensity and hard-breakage, in addition, PET bottle can be made into different specs and shapes; For the consumer, they can take easily and conveniently without exploding.
